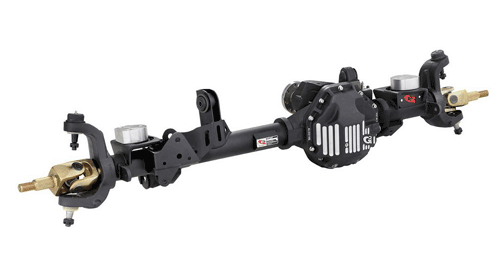

Jeep Wrangler (JK) G2 CORE 44 High Pinion Front Axle w/35 Spline ARB Air Locker

[Allen's Offroad]

Great deal here. Click the image below to order online at Allen's Offroad. Add to cart to see final pricing.



Save $250 On G2 Core 44 Complete Assemblies (Mail-In Rebate) Print Form
Free Air Compressor (CKSA12) With Purchase. A $170 Value.

07-Current Wrangler JK, 2& 4 Door
High Pinion Front with choice of gear ratio (4.56-5.38) and ARB Air Locker
Utilizes new generation 8.8in. JK 44 ring & pinion with larger pinion shaft
USA Made 4340 Chromalloy 1.5in. 35 spline Placer axle shafts
Heavy duty Dana Spicer 5-7166X Axle U-Joints
Factory style flange pinion yoke
3 Degrees extra axle caster for 6in. and up lifts (Choose C4JMFL model numbers)*
Stock axle caster for 0-4in. lifts (Choose C4JMFS model numbers)**
Massive forged inner C-ends
Integrated skid plates on lower control arm mounts
Heavy-duty 1/4in. laser cut brackets
Heavy duty 3in. diameter 5/16in. DOM tubes
Reinforcing ribs for added strength and protection
Uses metric Rubicon style carrier bearings
Heavy duty forged bearing caps
Spanner nuts for backlash adjustment
Heat-treated aluminum diff cover with cooling fins
California Residents: WARNING

Part numbers:

C4JMFL456AP5 - G2 CORE 44 FRONT 4.56 W/ARB AIR LOCKER
C4JMFL488AP5 - G2 CORE 44 FRONT 4.88 W/ARB AIR LOCKER
C4JMFL513AP5 - G2 CORE 44 FRONT 5.13 W/ARB AIR LOCKER
C4JMFL538AP5 - G2 CORE 44 FRONT 5.38 W/ARB AIR LOCKER
C4JMFS456AP5 - G2 CORE 44 FRONT 4.56 W/ARB AIR LOCKER
C4JMFS488AP5 - G2 CORE 44 FRONT 4.88 W/ARB AIR LOCKER
C4JMFS513AP5 - G2 CORE 44 FRONT 5.13 W/ARB AIR LOCKER
C4JMFS538AP5 - G2 CORE 44 FRONT 5.38 W/ARB AIR LOCKER

* Total of 10 deg caster with pnion and front cover at 0 deg on X and Y axis.
** Total of 7 deg caster with pnion and front cover at 0 deg on X and Y axis.
