We have been manufacturing and selling these Clamps, and are now stocking these for same day shipment.
Starting at $35.99

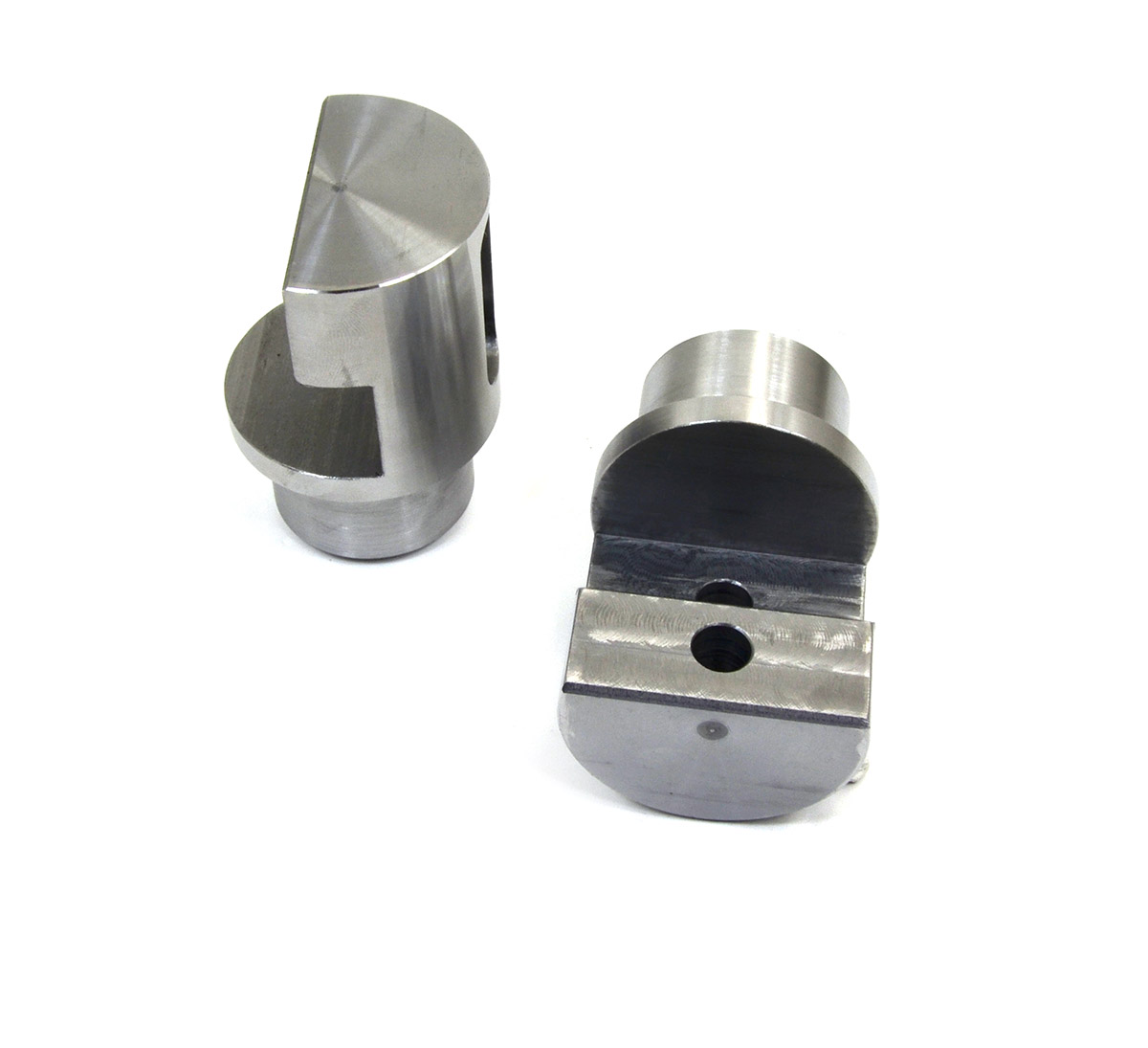

If your Fabricating some thing with round or Square tube, Chances are you will need to be able to remove it at some point. Why not do it easy and strong with these CNC Machined Interlocking tube clamps.

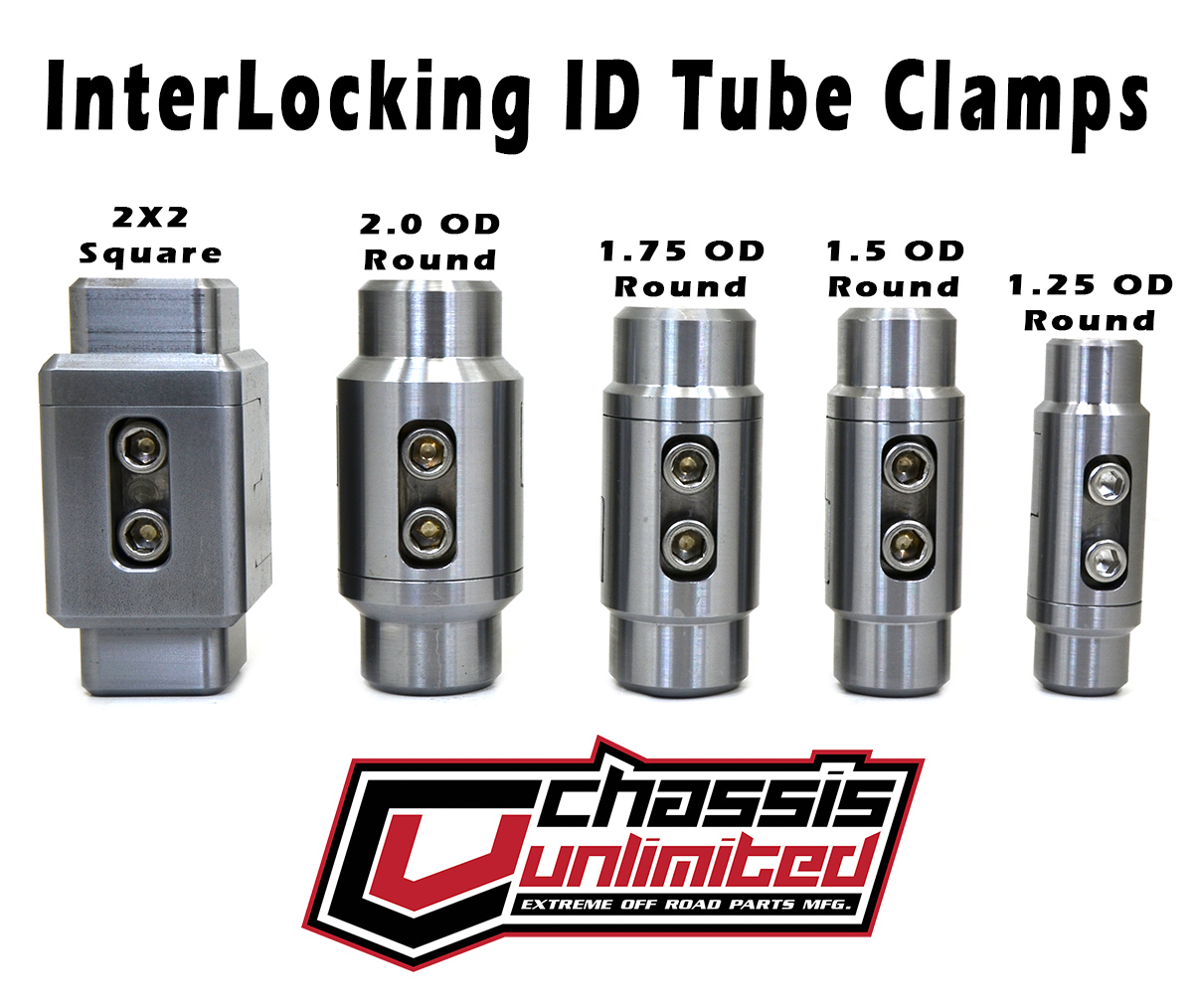

100% Machined in House from USA Cold Rolled Steel, these tube clamps are literally bullet proof. We are offering these in Multiple sizes, we are sure to have the size you need! If you need a Custom size, Feel free to ask us lead times and pricing.
We Designed these to use large Stainless Steel 3/8 socket head hardware which can be inserted from any direction or side of the clamp,due to its unique design using milled pockets. The Nylock nuts can also be can be inserted to either side of the clamp, and no wrench is required to hold the nut while tightening the bolt due to the clamps design that holds the nut from either side.

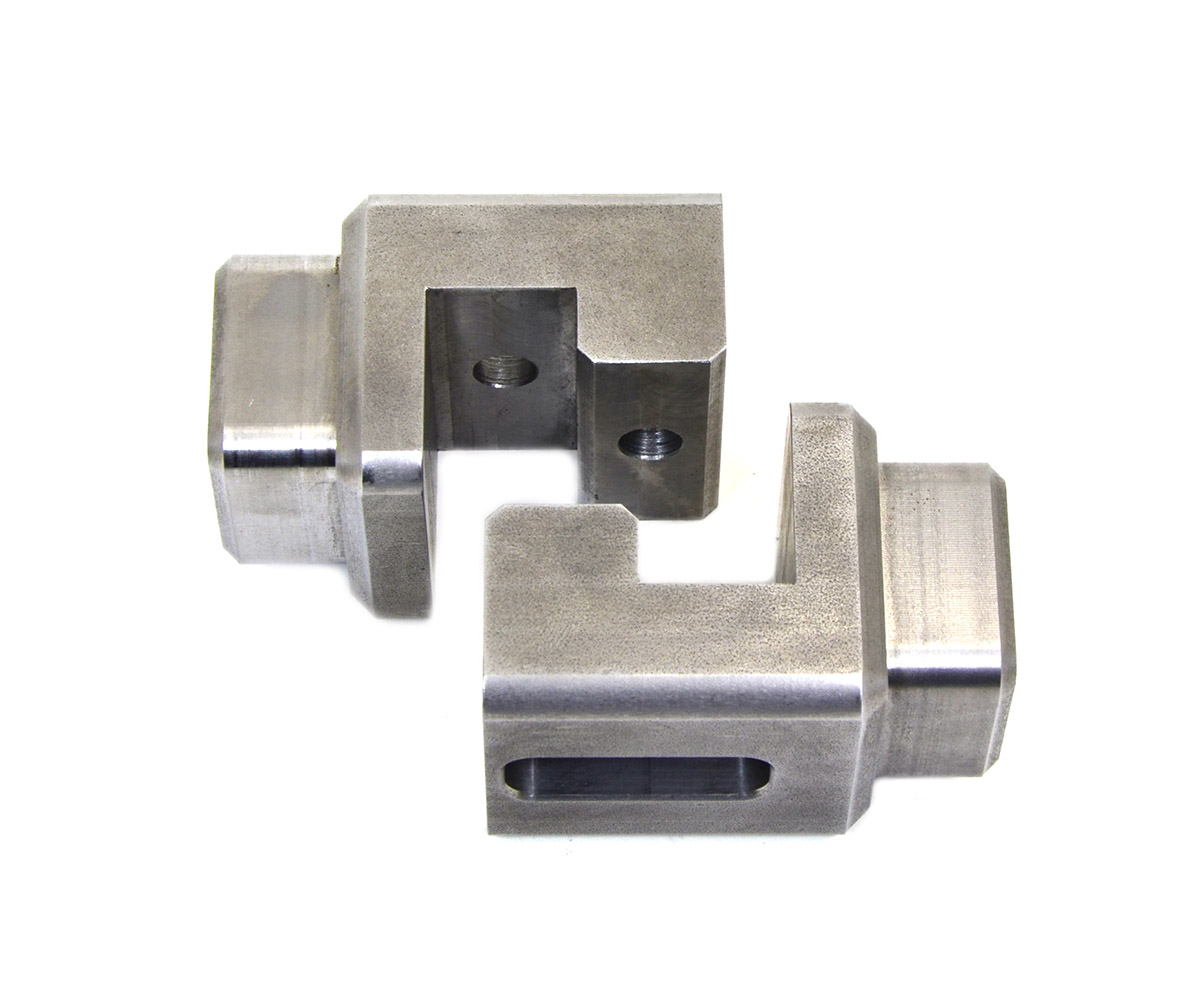

Interlocking Round & Square Clamp Features-
-Made In USA from 1018 CR Steel
-Measures 2.5" When inserted into Tube, 4.25" Over all Length, Diameter Vary By size Selected.
-CNC Machined, with 45 Degree Chamfer on both sides for ease of mating two halfs when installed.
-Both Half's are Machined Exactly the same, Replacement is easy, and No threads to strip out.
-Stainless Steel hardware and Nylock nuts included
-Sold Individually(One Complete Clamp Set up)
Purchase all sizes Directly From our Web site, and Get more info, Here-
ChassisUnlimited.com/product/tube-clamps.html
Or Call us @ 888-552-5371
Dont Forget to Follow Us on Facebook For Updates and Specials- HERE
Dealer Programs Available for all of Chassis Unlimited Products, Call for Details.
