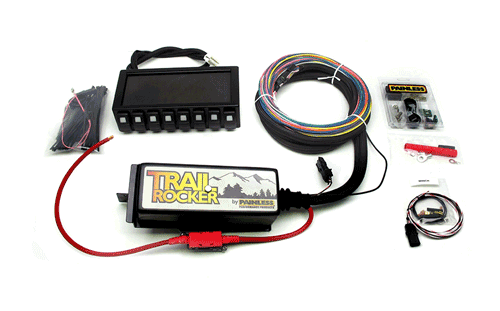

Introducing the brand new Trail Rocker from Painless, allowing you to control up to eight accessories on your TJ Jeep! The heart of this kit is enclosed in the weatherproof housing that surrounds the power center with eight fuses and relays. Controlling it, are eight prewired switches mounted in our custom switch panel that mounts on your dash.The power center then provides you with all the necessary weatherproof connectors and wiring to connect to your Jeep accessories ranging from lights to air lockers. Easily installed with our detailed instructions and plug-n-play design.
•Control up to eight accessories, (8) 30 amp fuses and (8) 30 amp relays
•Weatherproof housing around the power center and connections
•Custom bolt-on powder coated bracket for the power center
•Switch panel mounts eight LED switches in a factory non-intrusive dash location
Winch Ready! The Trail Rocker system includes dedicated wires for controlling a winch. Purchase of their Winch Control Add-on Kit part number 57150 is required for operation.

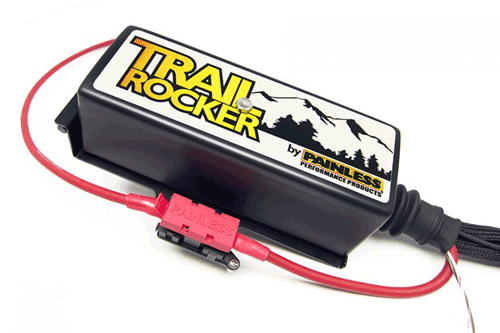

The top of the weatherproof fuse & relay center features the stylish logo silkscreened onto it. Along with the fused power source mounted next to it. Underneath the fuse & relay center you will find the powder coated custom mounting bracket with stainless hardware. This bracket is designed to install in existing mounting holes under the hood.

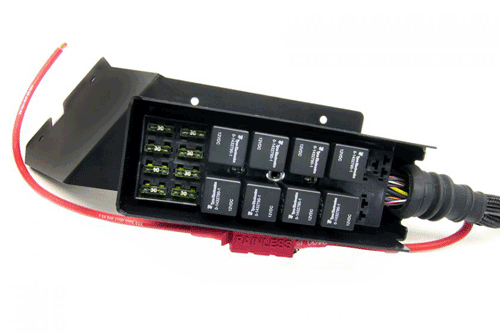

The heart of the Trail Rocker is the fuse & relay center. Here you will find eight 30 amp fuses and eight 30 amp relays.

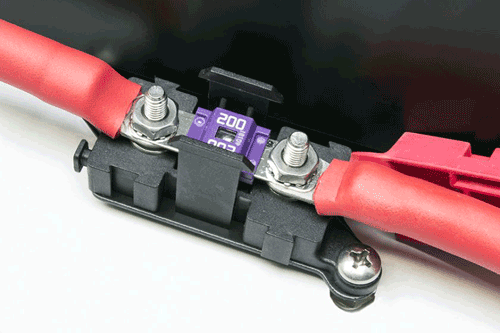

The 200 Amp MIDI fuse comes pre-installed ready to protect your investment!
The underside of the fuse & relay cover has a built in gasket to help keep any moisture out and to act as an extra support for the relays. This extra support on the relays ensures that no matter how good or bad you are on the trails, the relays will not pop out of place.

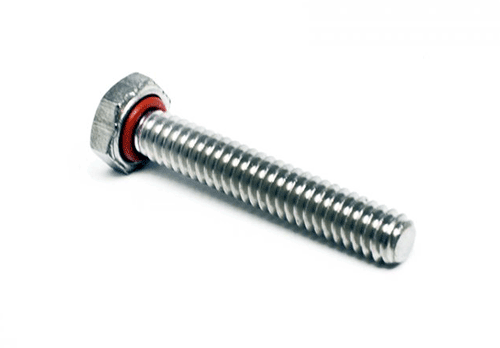

Attention to detail shows in this bolt with O-ring combo to hold the top cover on.

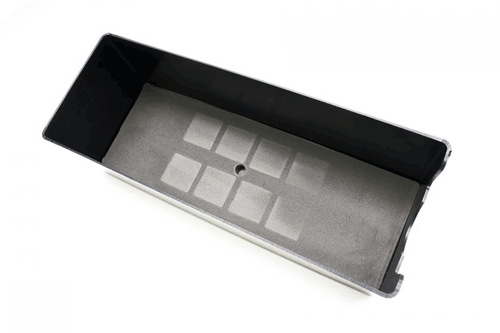

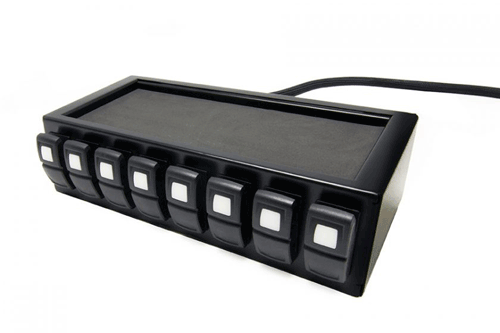

These switches are vibration, shock, thermoshock, moisture, and salt spray resistant. This panel mounts on top of your dash over your existing cubby hole. Don't worry though, we provide you a new cubby to place your goods in along with a padded insert.

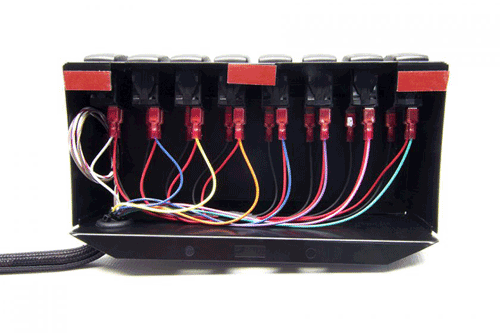

The back side of the switch panel comes pre terminated and ready to plug into the fuse & relay center.

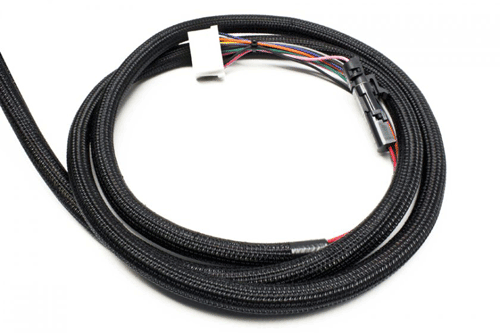

This harness attaches the fuse & relay center to the switch panel. It’s a plug-n-play design that only requires you to route it and plug it in.

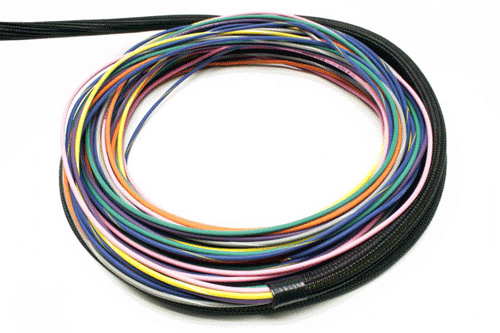

Exiting the fuse & relay center we provide you with 21’ of wire to reach any 12 volt accessory you have.

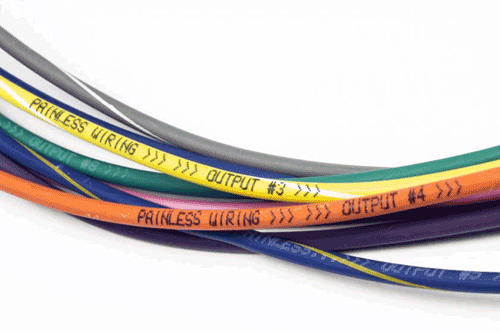

Printed every 12” on the wire you’ll find the circuit description, a signature touch of ours.

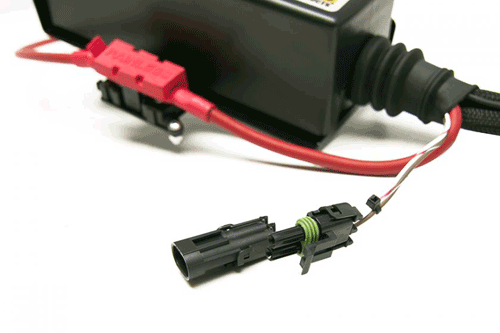

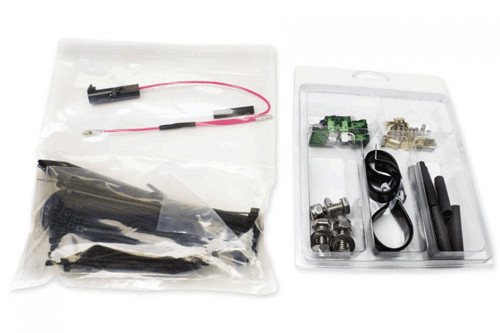

The parts kit comes with everything you’ll need to install the Trail Rocker, except the tools and the Jeep. You’ll also find a custom pigtail that allows the Trail Rocker to power up only when the key is turned on. The system is shipped to be powered at all times.
You'll also find a winch pigtail that is pre wired into the kit. This pigtrail is ready to wire up to your winch. The other end is ran up to the switch panel. With the purchase of our custom winch switch PN 57150. You can easily replace one of your switches and control your winch from in the cab. Be sure to visit our wiring schematics page for details on wiring this to your winch. Painless Performance Schematics
If you’ve never seen a Painless manual, you’re in for a treat. Click the image above for a PDF version of this nearly 50 page full color manual. You’ll wish we made manuals for everyday living.
